Detail Information
| Attribute | Details |
|---|---|
| Place Of Origin | China |
| Certification | CE, ROHS, ISO9001 |
| Product Name | E1-F902K |
| Total Tape Thickness | 0.055±0.005mm |
| Adhesion To Steel | 15N/25mm |
| Color | Blue |
| Elongation At Break | ≥90% |
| Static Discharge (Removal From Roll) | <100V |
| Packaging Details | Poly Bag + Carton |
| Supply Ability | 10000 M²/Day |
| Highlight | Blue ESD Adhesive Tape, PET ESD Adhesive Tape, Blue ESD Anti Static Tapes |
Product Description
Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface
Blue Anti-static packing tape E1-F902K with excellent anti-static performance
E1-F902K is a blue tape coated with acrylic pressure sensitive adhesive on PET surface. It has good adhesion and low unwinding voltage. It is suitable for environments with high anti-static level requirements.
Features And Benefits:
1. Strong adhesion, no residual glue after removal.
2. Excellent anti-static performance. .
3. Low unwinding voltage.
4. Excellent tensile properties.
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.12±0.2mil | 0.055±0.005mm |
| Adhesion to Steel | ≥2.74lbs/in | ≥15N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
| Surface Resistance | 106~8ohms | 109~10ohms |
| Static Discharge (Removal from roll) | <100V | <100V |

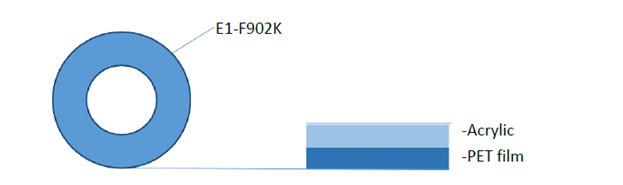

Construction:
Application
The product can be applied to various environments with anti-static.Requirements such as fixing, connecting and packaging of electronic Manufacturing .It can also be used as temporary bonding.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Notes
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
