Detail Information
| Attribute | Details |
|---|---|
| Place Of Origin | Guangdong, China |
| Certification | RoHS |
| Product Name | E1-TH862G |
| Color | Green |
| Upmost Temperature | 200°C |
| Adhesion To Steel | 5~7 (N/25mm) |
| Tensile Strength At Break | ≥4 (KN/M) |
| Elongation At Break | ≥90% |
| Packaging Details | Plastic Bag + Carton |
| Supply Ability | 10000 Square Meters/Day |
| Highlight | 0.06mm Green Polyester Tape, RoHS Green Polyester Tape, 0.06mm Heat Resistant Tapes |
Product Description
Super Antisatic Green Polyester Tape Anti Aging Strong Heat Resistant Tapes 0.06mm
Super antistatic green polyester tape E1-TH862G heat resistant adhesive tape with super antisatic performance
E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.
Features And Benefits:
1. Resistant high temperature up to 200℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Properties:
| Product | Units | Test values |
| Backing Thickness: | mm | 0.025 |
| Total Tape Thickness: | mm | 0.060±0.005 |
| Tack | ≥26(J.DOW/#) | |
| Adhesion to Steel: | N/25mm | 5～7N |
| Tensile Strength at Break: | KN/M | ≥4 |
| Elongation at Break: | % | ≥90% |
| Upmost Temperature | ° C | 200 |
| Surface Resistance | ohms | 106~8ohms |
| Static Discharge(Removal from roll) | Voltage | <100V |

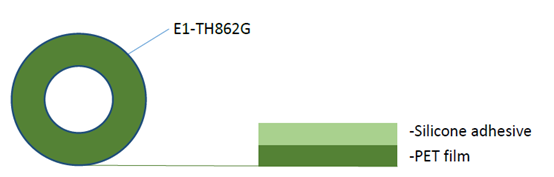

Construction:

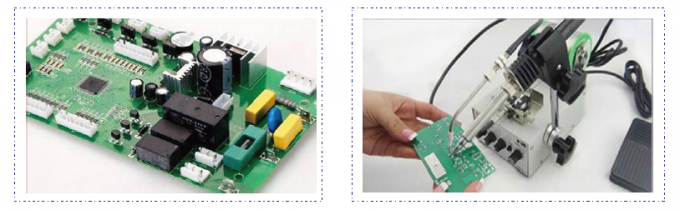

Application
Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.
Storage
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Why choose us?
1. Gold supplier.
2. Provide samples and best service.
Notes
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
