Detail Information
| Attribute | Details |
|---|---|
| Place Of Origin | China |
| Certification | RoHS |
| Product Name | STD-IH890S |
| Total Tape Thickness | 0.035±0.005mm |
| Temperature Resistance | 260°C *5 Mins |
| Adhesion To Steel | 2-3.5N/25mm |
| Tensile Strength At Break | ≥5 (KN/M) |
| Backing Thickness | 0.025mm |
| Packaging Details | Plastic Bag + Carton |
| Supply Ability | 10000 Square Meters/Day |
| Highlight | ODM High Temperature Polyimide Tape, 0.035mm High Temperature Polyimide Tape, ODM black kapton tape |
Product Description
Silicone Free High Temperature Polyimide Tape Anti Aging 0.035mm
Silicone-free polyimide tape-IH890S polyimide heat resistant adhesive tape with good heating resistance
STD-IH890S is a polyimide film backed Acrylic adhesive tape with excellent heatresistance and insulation properties.
Features And Benefits:
1. Resistant high temperature up to 260℃.
2. Good Adhesion ,No residue after removal.
3. Excellent anti-aging ability, long shelf life.
High Temperature Polyimide Tape Properties:
| Item | Typical Value |
Test Method |
|
| Imperial | Metric | ||
| Backing | 1.0mil | 0.025mm | / |
| Total Thickness | 1.38±0.2mil | 0.035±0.005mm | / |
| Adhesion to Steel | 0.45～0.79lbs/in | 2~3.5N/25mm | GBT 2792-2014 |
| Tensile Strength | ≥28lbs/in | ≥5(KN/M) | GBT 30776-2014 |
| Elongation | ≥45% | ≥45% | GBT 30776-2014 |
|
Maximum Operating Temperature |
500℉ | 260℃*5min | No residue after removal |

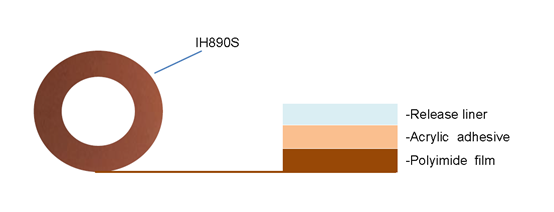

Construction:
Application:
Masking or protecting residue sensitive areas on printed circuit boards during high temperature operations such as wave soldering and solder reflow.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
