Detail Information
| Attribute | Details |
|---|---|
| Place Of Origin | China |
| Certification | CE, ROHS, ISO9001 |
| Product Name | E1-UV381S |
| Total Tape Thickness | 0.120±0.005mm |
| Backing Thickness | 0.100 ±0.002mm |
| Peeling Strength Before UV | >6N/25mm |
| Peeling Strength After UV | 0.3N/25mm |
| Elongation At Break | ≥45% |
| Packaging Details | Plastic Bag + Carton |
| Supply Ability | 50000 Rolls Per Month |
| Highlight | 0.12mm Polyester Adhesive Tape, RoHS Polyester Adhesive Tape, 0.12mm adhesive polyester tape |
Product Description
UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick
Anti-Static high temperature UV-Releasing adhesive polyester tape E1-UV381S with high initial peeling strength
E1-UV381S is a high performance product coating UV adhesive on the surface of polyester. It has high initial peeling strength. Low adhesion after UV irradiation and no residue after peeling off.
Features and Benefits:
1. High initial adhesion.
2. Low adhesion after UV curing, easy to separate.
Properties:
|
Item Polyester Adhesive Tape |
Typical Value |
Test Method Test Method |
|
| Metric | |||
| Backing | 0.100mm | / | |
| Total Thickness | 0.120±0.005mm | / | |
| Peeling strength | Before UV | 6N/25mm | GBT 2792-2014 |
| After UV | 0.03N/25mm | ||
| Tensile Strength | ≥8(KN/M) | GBT 30776-2014 | |
| Elongation | ≥45% | GBT 30776-2014 | |
| Surface Resistance | 10 6~9 ohms | / | |

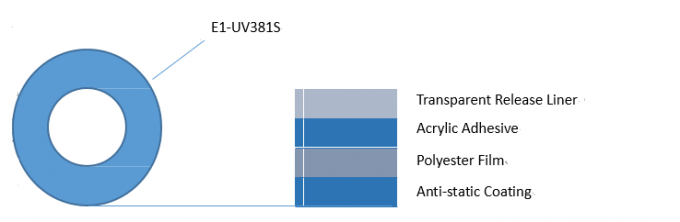

Construction
Application
1. Wafer, component, glass cutting and grinding process cutting.
2. 3D glass bonding process, component packaging transfer.
3. Soft lithium battery protection, metal and anti-static protection.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
