Detail Information
| Attribute | Details |
|---|---|
| Place Of Origin | China |
| Certification | CE, ROHS, ISO9001 |
| Product Name | E2-MA311 |
| Adhesion To Steel | 2~5N/25mm |
| Total Tape Thickness | 0.11±0.002mm |
| Elongation At Break | ≥5% |
| Static Discharge | <100V |
| Tensile Strength At Break | ≥2 (KN/M) |
| Packaging Details | Poly Bag + Carton |
| Supply Ability | 10000 M²/Day |
| Highlight | Single Side ESD Adhesive Tape, Crepe ESD Adhesive Tape, ESD Crepe Paper Masking Tape |
Product Description
High Adhesion ESD Adhesive Tape Single Side Crepe Paper Masking Tape
Anti-static tape based with crepe paper tape E2-MA311 with good adhesion
E2-MA311 is a anti-static tape based with crepe paper with good adhesion.It not only has no residue after being removed, but also has low electrification when pasted and removed.
Features And Benefits:
1. Low electrostatic discharge at unwind.
2. RoHS Compliant..
3. No residue after removal.
Properties:
| Item Crepe Paper Masking Tape | Typical Value | |
| Total Thickness | 0.11±0.002mm | |
| Adhesion to Steel | 2～5N/25mm | |
| Tensile Strength | ≥2(KN/M) | |
| Elongation | ≥5% | |
| Surface resistance | Back | 106-11ohms |
| Adhesive | 106-11ohms | |
| Static Discharge | ≤100V | |

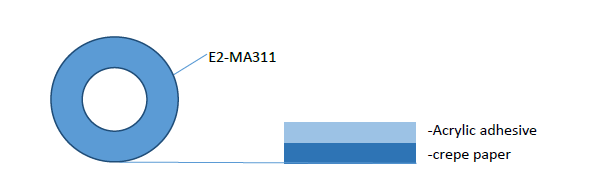

Construction:
Application:
The product can be applied to various environments with anti-static requirements, such as fixing, connecting and packaging of electronic manufacturing.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
