Detail Information
| Attribute | Details |
|---|---|
| Place Of Origin | Guangdong, China |
| Certification | RoHS |
| Product Name | E1-MH306 |
| Static Discharge | <100V |
| Adhesion To Steel | 3 ~ 5N/25mm |
| Total Tape Thickness | 0.085±0.01mm |
| Maximum Operating Temperature | 200°C |
| Tensile Strength At Break | ≥5 (KN/M) |
| Packaging Details | Poly Bag + Carton |
| Supply Ability | 10000 M²/Day |
| Highlight | 3.4mil Heat Resistant Adhesive Tape, ODM Heat Resistant Adhesive Tape, 3.4mil high heat resistant tape |
Product Description
3.4mil Masking Heat Resistant Adhesive Tape
Crepe Paper Masking Tape-E1-MH306 With Excellent High Temperature And Anti-Static Performance
E1-MH306 is a crepe paper tape with super temperature resistant& anti- static performance,which is masking for important areas of PCB during wave soldering process.
Features And Benefits:
1.Excellent high temperature and anti-static performance
2.Fulfill RoHS standard
3.Easy tearing ,no glue residue
4.Good resistance to chemical solvents, high adhesion
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Total Thickness | 3.4mil | 0.085±0.01mm |
| Adhesion to Steel | 0.68～1.14lbs/in | 3～5N/25mm |
| Tensile Strength | ≥28.56lbs/in | ≥5(KN/M) |
| Elongation | ≥5% | ≥5% |
| Surface resistance | 106-9ohms | 106-9ohms |
| Peeling static charge | ≤100V | ≤100V |
| Heat Resistance | 392℉ | 200℃ |

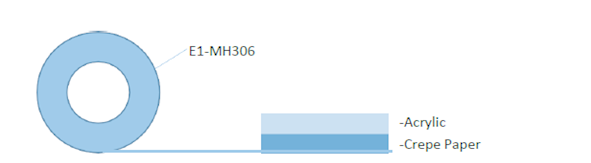

Construction
Application

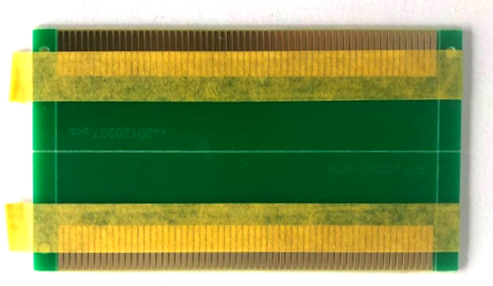

Mainly masking for gold finger and other socket during wave soldering process.
Storage
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
4. Good reputation and after-sales service team.
Notes
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
